Tefen PA66 Blue BSPT 1/8" Female Connector - Fits 8mm Hose ID
Description
Tefen hose fittings are the perfect choice to connect all types of flexible rubber and plastic tubes in domestic industrial and all other general applications. In order to secure tube on the fitting bard, it is recommended to use HCL's Herbie Clip or similar Metal Clamps such as the Ezyclik-M, Ezyclik-P or the Norma Cobra Clamp.
All sizes are true outside diameter of the fittings and will match the Nylon 6.6 inside diameter of the tube. for fitting dimensions - refer to tube ID or OD with respect to the common application.
BSP- BSPT Fitting Guide
Downloads
Note on choosing the correct part
- Fits Hose/Tube ID - refers to the Inner Diameter of the Hose/Tube you are using with the Tefen Fitting
- Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses

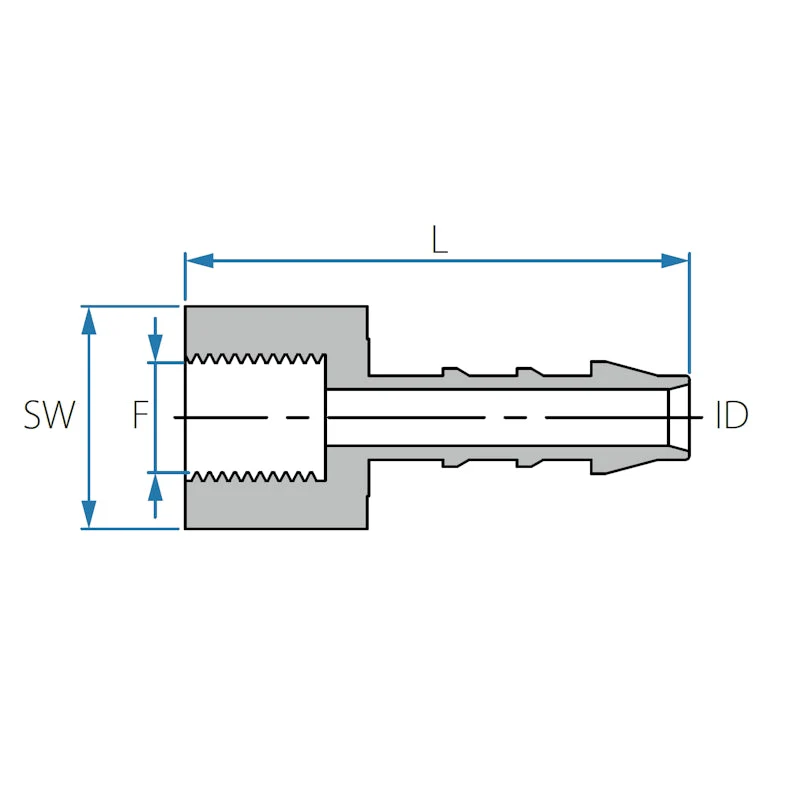

Product Specifications
- Fits Hose/Tube ID mm 8.0
- Female (F) BSPT Inch 1/8
- Length mm 39.4
- Spanner Width mm 14
- Working Pressure14 Bar/200 PSI (@20°C)
- Min Temp °C-20
- Max Temp °C110
- Material PA66
- Manufactured By Tefen
Features
- Strong and durable
- High impact resistance
Description
Tefen hose fittings are the perfect choice to connect all types of flexible rubber and plastic tubes in domestic industrial and all other general applications. In order to secure tube on the fitting bard, it is recommended to use HCL's Herbie Clip or similar Metal Clamps such as the Ezyclik-M, Ezyclik-P or the Norma Cobra Clamp.
All sizes are true outside diameter of the fittings and will match the Nylon 6.6 inside diameter of the tube. for fitting dimensions - refer to tube ID or OD with respect to the common application.
BSP- BSPT Fitting Guide
Downloads
Note on choosing the correct part
- Fits Hose/Tube ID - refers to the Inner Diameter of the Hose/Tube you are using with the Tefen Fitting
- Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses
Product Specifications
- Fits Hose/Tube ID mm 8.0
- Female (F) BSPT Inch 1/8
- Length mm 39.4
- Spanner Width mm 14
- Working Pressure14 Bar/200 PSI (@20°C)
- Min Temp °C-20
- Max Temp °C110
- Material PA66
- Manufactured By Tefen
Features
- Strong and durable
- High impact resistance
