Plastic Hose Clamp - Herbie Clip - 10.3-12.0mm - Black - PA66
Description

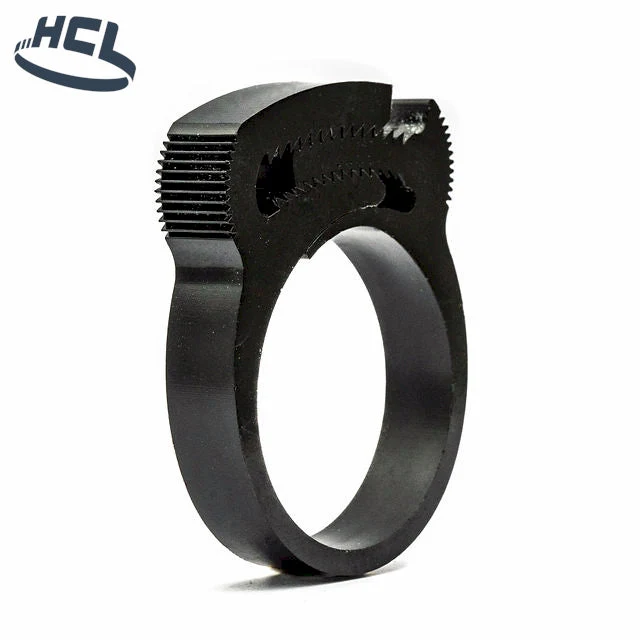

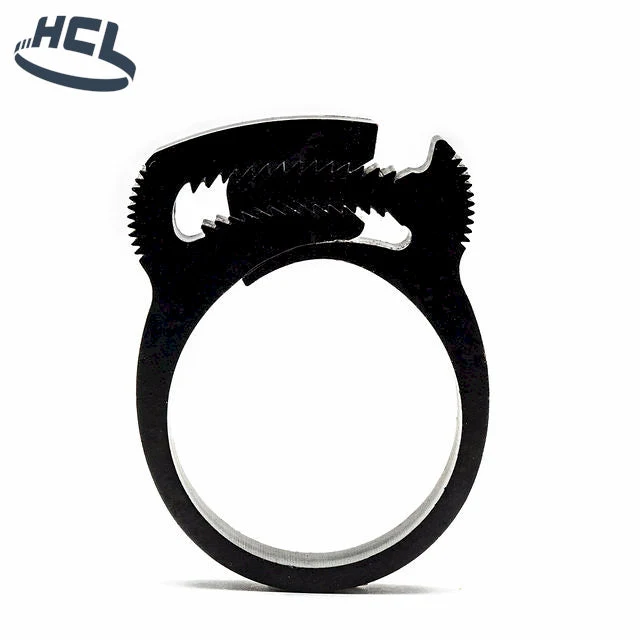

Designed and manufactured by HCL to the highest quality the Herbie Clip is the original double grip plastic hose clamp. It offers exceptional strength due to it’s unique double row of interlocking toothed jaws which offer over twice the clamping forces achieved by similar toothed products. The Herbie Clip is a high-quality hose clamp made from Nylon 6.6 and offers the largest range of Snap Fit Style Hose Clamps with 38 sizes ranging from 5.6mm to 169mm diameter. The clamp is highly versatile and lends itself to a wide variety of applications meaning that Herbie Clips can be found in Agricultural Machinery, Automotive Engines, White Goods and many other applications.
Downloads
Product Specifications
- Min diameter (A) mm - inch10.3 - 0.41
- Max diameter (A) mm - inch12.0 - 0.47
- Band Width (B) mm - inch5.9 - 0.23
- Band Thickness (C) mm - inch1.7 - 0.067
- Head Height (F) mm - inch12.4 - 0.49
- Clamp MaterialNylon 6.6
- Flammability UL 94 V-2
- Max long term operating temp125°C - 255°F
- Max peak operating temp170°C - 340°F
- Brand Herbie Clip
- Manufactured By HCL Fasteners
- Country of ManufactureUnited Kingdom
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Double row of interlocking teeth
- Easy to install with pliers
- Reusable and releasable
- Minimal leak path
- Non-corrosive, non-conductive, non-magnetic
- Over 30 bar pressure resistance
- Choice of material
- Choice of colours (Black standard)
