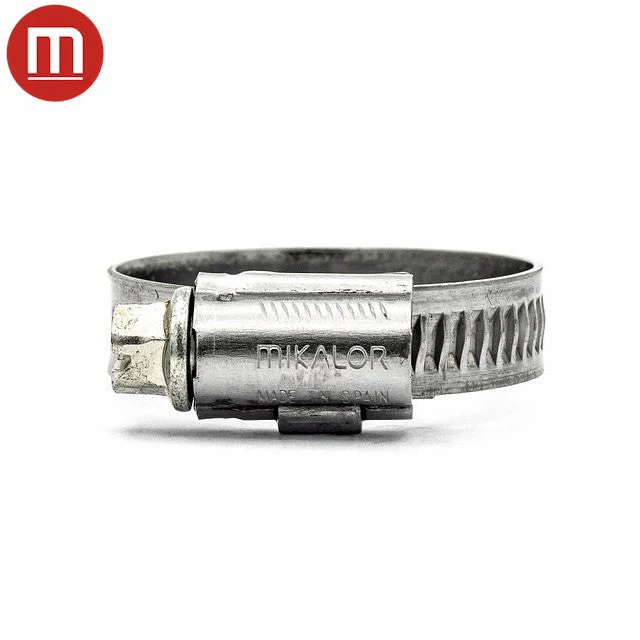

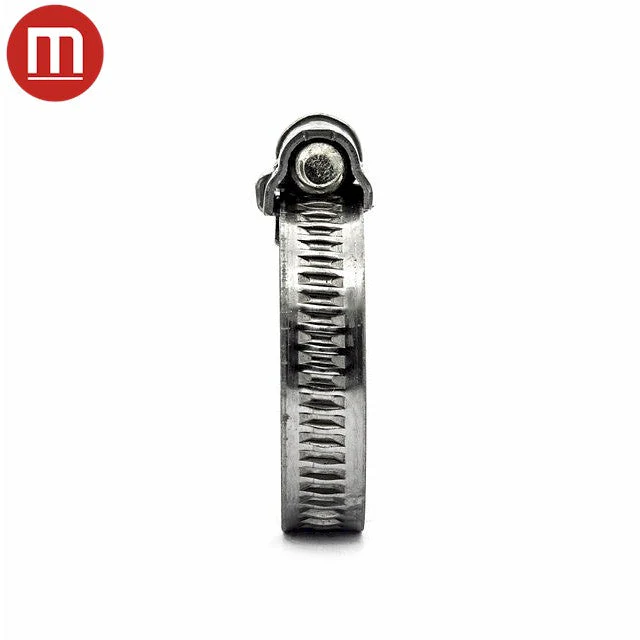

Mikalor ASFA L Worm Drive Hose Clamp - 60-80mm - 430SS - 9mm Wide
Description
Mikalor's patented ASFA-L premium Worm Drive hose clamps are manufactured in Spain in accordance with DIN3017. Their innovative housing is designed for high strength whilst remaining compact. The cold-formed stamped band is smooth on the underside and bevelled at the edges, protecting the hose from damage. The ASFA "L" hose clip complies fully with the DIN 3017 norm and also with the RoHs directive EU 2002/95/EC dated 1st July 2006. This clip is ideal for general industrial applications. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.
Downloads
Product Specifications
- Diameter Range (A) mm60.0 - 80.0
- Diameter Range (A) inch2.36 - 3.15
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch0.7 - 0.028
- Max Torque Nm4
- Maximum Pressure Psi15
- Screw7mm A/F
- Band/Housing MaterialW2 430SS
- Screw MaterialW1 Mild Zinc Plated Steel
- Brand ASFA-L
- Manufactured ByMikalor
- Manufactured according toDIN3017
- Country of ManufactureSpain
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Description
Mikalor's patented ASFA-L premium Worm Drive hose clamps are manufactured in Spain in accordance with DIN3017. Their innovative housing is designed for high strength whilst remaining compact. The cold-formed stamped band is smooth on the underside and bevelled at the edges, protecting the hose from damage. The ASFA "L" hose clip complies fully with the DIN 3017 norm and also with the RoHs directive EU 2002/95/EC dated 1st July 2006. This clip is ideal for general industrial applications. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.
Downloads
Product Specifications
- Diameter Range (A) mm60.0 - 80.0
- Diameter Range (A) inch2.36 - 3.15
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch0.7 - 0.028
- Max Torque Nm4
- Maximum Pressure Psi15
- Screw7mm A/F
- Band/Housing MaterialW2 430SS
- Screw MaterialW1 Mild Zinc Plated Steel
- Brand ASFA-L
- Manufactured ByMikalor
- Manufactured according toDIN3017
- Country of ManufactureSpain
- Hazardous GoodsNo
- RoHS CompliantYes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
